THERMOBOX® C
Active system with Peltier cooling
It keeps the temperature within the desired values and with low temperature fluctuations. Combined with highly efficient insulation provides secured food quality.
- |
THERMOBOX® C60
Guides: 4 x GN 1/1, 80mm spacing
Outer: W: 525mm x D: 830mm x H: 895mm
Inner: W: 330mm x D: 540mm x H: 350mm
Weight: 46 kg
230V/245W
Product number: 122206-ZC
SDX Thermobox C60 (4 GN 1/1) Single handed grip handle
Product number: 122206-XC
SDX Thermobox C60 (4 GN 1/1) Eccentric lock
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
212011 Extra handles, set of 2
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENTS
SDX_C60_EN.pdf
122206-ZC C60 Exploded view.pdf
122206-ZC C60 2D-drawing.pdf
C - Active cooling Revit family.rfa
THERMOBOX® C90
Guides: 6 x GN 1/1, 80mm spacing
Outer: W: 525mm x D: 830mm x H: 1055mm
Inner: W: 330mm x D: 540mm x H: 510mm
Weight: 56 kg
230V/245W
Product number: 122207-ZC
SDX Thermobox C90 (6 GN 1/1) Single handed grip handle
Product number: 122207-XC
SDX Thermobox C90 (6 GN 1/1) Eccentric lock
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
212011 Extra handles, set of 2
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENTS
SDX_C90_EN.pdf
122207-ZC C90 Exploded view.pdf
122207-ZC C90 2D-drawing.pdf
C - Active cooling Revit family.rfa
THERMOBOX® C120
Guides: 8 x GN 1/1, 80mm spacing
Outer: W: 525mm x D: 830mm x H: 1215mm
Inner: W: 330mm x D: 540mm x H: 670mm
Weight: 68 kg
230V/245W
Product number: 122205-ZC
SDX Thermobox C120 (8 GN 1/1) Single handed grip handle
Product number: 122205-XC
SDX Thermobox C120 (8 GN 1/1) Eccentric lock
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
212011 Extra handles, set of 2
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENTS
SDX_C120_EN.pdf
122205-ZC C120 Exploded view.pdf
122205-ZC C120 2D-drawing.pdf
C - Active cooling Revit family.rfa
THERMOBOX® C150
Guides: 10 x GN 1/1, 80mm spacing
Outer: W: 525mm x D: 830mm x H: 1180mm
Inner: W: 330mm x D: 540mm x H: 830mm
Weight: 65 kg
230V/245W
Product number: 122208-ZC
SDX Thermobox C150 (10 GN 1/1) Single handed grip handle
Product number: 122208-XC
SDX Thermobox C150 (10 GN 1/1) Eccentric lock
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
212011 Extra handles, set of 2
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENTS
SDX_C150_EN.pdf
122208-ZC C150 Exploded view.pdf
122208-ZC C150 2D-drawing.pdf
C - Active cooling Revit family.rfa
THERMOBOX® C180
Guides: 12 x GN 1/1, 80mm spacing
Outer: W: 525mm x D: 830mm x H: 1355mm
Inner: W: 330mm x D: 540mm x H: 1000mm
Weight: 70 kg
230V/245W
Product number: 122200-ZC
SDX Thermobox C180 (12 GN 1/1) Single handed grip handle
Product number: 122200-XC
SDX Thermobox C180 (12 GN 1/1) Eccentric lock
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
212011 Extra handles, set of 2
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENTS
SDX_C180_EN.pdf
122200-ZC C180 Exploded view.pdf
122200-ZC C180 2D-drawing.pdf
C - Active cooling Revit family.rfa
THERMOBOX® MACHINE WASHABLE C180
This version of the C180 is machine washable. By default, the temperature is set to 3°C. Controls for the temperature are located behind a sealed cover on the back of the unit. In addition, a cover is included for both the cooling unit and control unit, but it is not shown in the picture. Equipped with 160 mm stainless steel casters.
Guides: 12 x GN 1/1, 80mm spacing
Outer: W: 525mm x D: 830mm x H: 1355mm
Inner: W: 330mm x D: 540mm x H: 1000mm
Weight: 70 kg
230V/245W
Product number: 122450-ZCW
SDX Thermobox Machine Washable C180 (12 GN 1/1) Onegrip handle
DOCUMENTS
SDX_C180_MW_EN.pdf
THERMOBOX® C210
Guides: 14 x GN 1/1, 80mm spacing
Outer: W: 525mm x D: 830mm x H: 1515mm
Inner: W: 330mm x D: 540mm x H: 1160mm
Weight: 75 kg
230V/245W
Product number: 122209-ZC
SDX Thermobox C210 (14 GN 1/1) Single handed grip handle
Additional pull handles on the sides, at the back, are included
Product number: 122209-XC
SDX Thermobox C210 (14 GN 1/1) Eccentric lock
Additional pull handles on the sides, at the back, are included
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENTS
SDX_C210_EN.pdf
122209-ZC C210 Exploded view.pdf
122209-ZC C210 2D-drawing.pdf
C - Active cooling Revit family.rfa

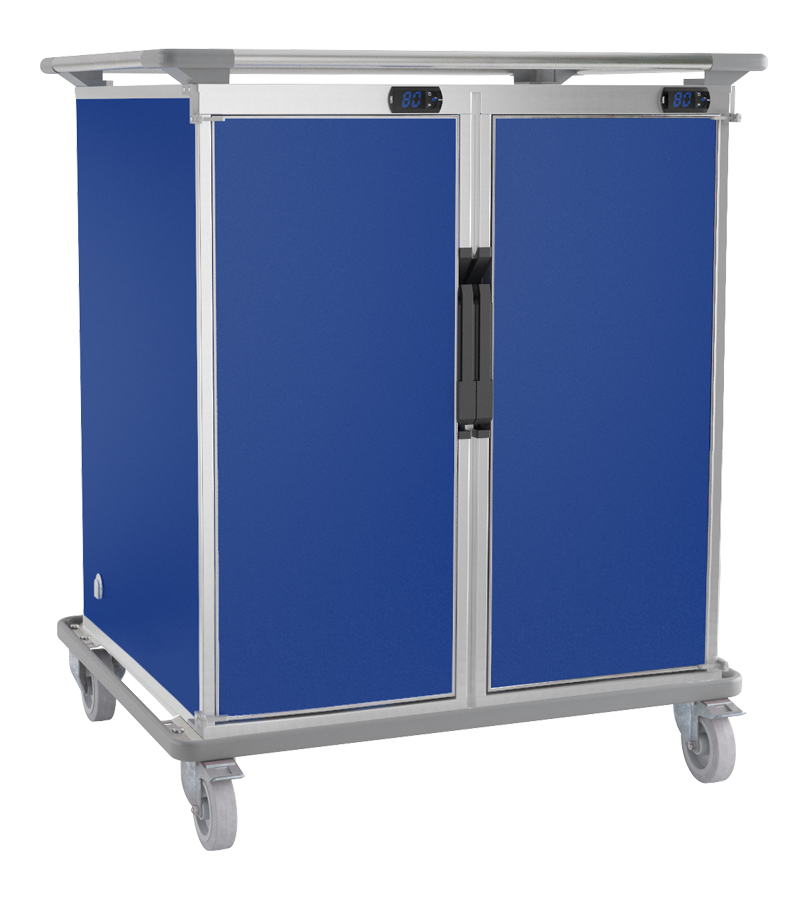

THERMOBOX® CC240
Guides: 8+8 x GN 1/1, 80mm spacing
Outer: W: 935mm x D: 830mm x H: 1215mm
Inner: W: 330 + 330mm x D: 540mm x H: 670mm
Weight: 120 kg
2 x 230V/245W
Product number: 122320-ZC
SDX Thermobox CC240 (8+8 GN 1/1) Single handed grip handle
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
212011 Extra handles, set of 2
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENT
SDX_CC240_EN.pdf
122320-ZC CC240 Exploded view.pdf
122320-ZC CC240 2D-drawing.pdf
C - Active cooling Revit family.rfa
THERMOBOX® CC360
Guides: 12+12 x GN 1/1, 80mm spacing
Outer: W: 935mm x D: 830mm x H: 1355mm
Inner: W: 330 + 330mm x D: 540mm x H: 1000mm
Weight: 140 kg
2 x 230V/245W
Product number: 122201-ZC
SDX Thermobox CC360 (12+12 GN 1/1)Single handed grip handle
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
212011 Extra handles, set of 2
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENT
SDX_CC360_EN.pdf
122201-ZC CC360 Exploded view.pdf
122201-ZC CC360 2D-drawing.pdf
C - Active cooling Revit family.rfa
THERMOBOX® CC420
Guides: 14+14 x GN 1/1, 80mm spacing
Outer: W: 935mm x D: 830mm x H: 1515mm
Inner: W: 330 + 330mm x D: 540mm x H: 1160mm
Weight: 150 kg
2 x 230V/245W
Product number: 122265-ZC
SDX Thermobox CC420 (14+14 GN 1/1)Single handed grip handle
Additional pull handles on the sides, at the back, are included
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENTS
SDX_CC420_EN.pdf
122265-ZC CC420 Exploded view.pdf
122265-ZC CC420 2D-drawing.pdf
C - Active cooling Revit family.rfa
THERMOBOX®CCC540
Guides: 12+12+12 x GN 1/1, 80mm spacing
Outer: W: 1360mm x D: 830mm x H: 1355mm
Inner: W: 330 + 330 + 330mm x D: 540mm x H: 1000mm
Weight: 210 kg
3 x 230V/245W
Product number: 122266-ZC
SDX Thermobox CCC540 (12+12+12 GN 1/1) Single handed grip handle
OPTIONAL EXTRAS
123006 200mm castors, 2 fixed and 2 swivel castors with brakes
149010 Towing set
123015 Central brake
123017 Glass door
123016 LED-light for trolleys with glass door
212011 Extra handles, set of 2
219028 Label holder A5
123032 Trayholder
311035 Lockable one grip handle
DOCUMENTS
SDX_CCC540_EN.pdf
122266-ZC CCC540 Exploded view.pdf
122266-ZC CCC540 2D-drawing.pdf
C - Active cooling Revit family.rfa
Technical specifications
Exterior walls: ABS plastic.
Inner container: Welded container in stainless steel.
Guides: Stainless steel, pressed from the inner container.
Insulation: Polyurethane foam.
Door: Internal surface made of smooth and seamless stainless steel. Exterior in ABS plastic with bolt lock and door mounted handle for one-handed grip.
Wheels: Hot-dip galvanized steel. 160 mm wheels with rubber tires, two brakes and 2 fixed. CCC540 box has six wheels, two braked and four fixed.
Top frame: Stainless steel and PVC corners.
Trolley frame: Reject list of stainless steel coated with PVC.
C: Efficient compact chillers with electronic temperature control AA120, 27 V DC. 230V/245W AC, insulation class IP55.
